1302147/N – BMW I-4CYL 1.5-2.0L 8V SOHC (RP/RP) M10 ignition helical gear RH (big bearing D44)
CATCAMS — BMW I-4CYL 1.5-2.0L 8V SOHC (RP/RP). M10 ignition helical gear RH (big bearing D44). Fornecimento: 1pc.
Novidade
Hurry and get discounts on all Apple devices up to 20%
Abertura2025
565,80€ IVA Inc.
Disponível por encomenda
Disponível por encomenda
Métodos de Pagamento:
Descrição
1302147/N — BMW I-4CYL 1.5-2.0L 8V SOHC (RP/RP)
M10 ignition helical gear RH (big bearing D44). Fornecimento: 1pc.

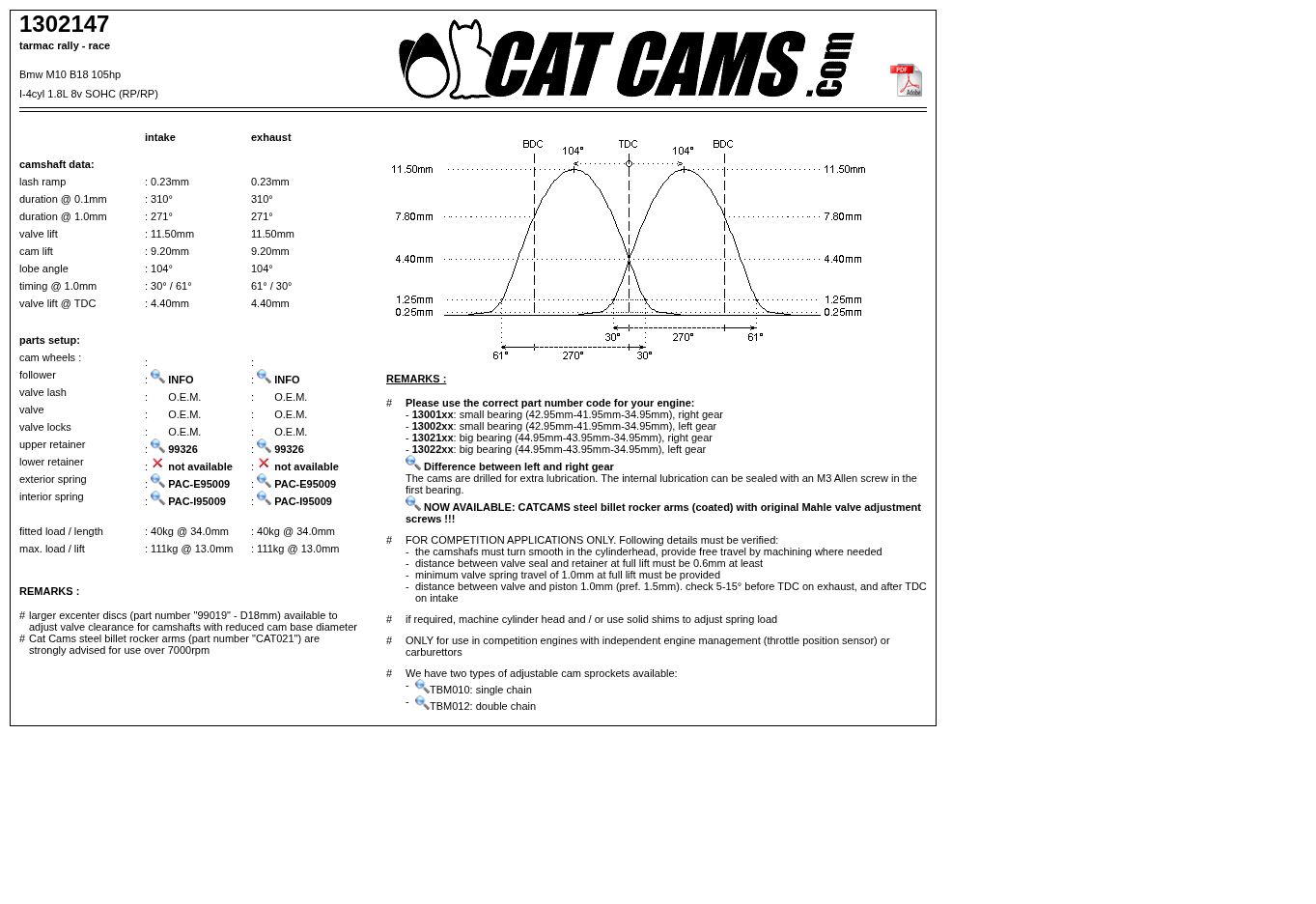

M10 B18 · I-4cyl 1.8L SOHC 8v (RP/RP)
| Dados técnicos / componentes | Admissão | Escape |
|---|---|---|
| Rampa de folga | 0.23mm | 0.23mm |
| Duração a 0,1 mm | 310° | 310° |
| Duração a 1,0 mm | 271° | 271° |
| Elevação da válvula | 11.50mm | 11.50mm |
| Elevação da came | 9.20mm | 9.20mm |
| Ângulo dos lóbulos | 104° | 104° |
| Distribuição a 1,0 mm | 30° / 61° | 61° / 30° |
| Elevação da válvula no PMS | 4.40mm | 4.40mm |
| Tucho / seguidor | INFO | INFO |
| Regulação da folga | O.E.M. | O.E.M. |
| Válvula | O.E.M. | O.E.M. |
| Cunhas | O.E.M. | O.E.M. |
| Prato superior | 99326 | 99326 |
| Prato inferior | not available | not available |
| Mola exterior | PAC-E95009 | PAC-E95009 |
| Mola interior | PAC-I95009 | PAC-I95009 |
| Carga / comprimento montado | 40kg @ 34.0mm | 40kg @ 34.0mm |
| Carga máxima / elevação | 111kg @ 13.0mm | 111kg @ 13.0mm |
Utilização CATCAMS: tarmac rally – race.
Observações originais CATCAMS
- larger excenter discs (part number "99019" – D18mm) available to adjust valve clearance for camshafts with reduced cam base diameter
- Cat Cams steel billet rocker arms (part number "CAT021") are strongly advised for use over 7000rpm
- Please use the correct part number code for your engine:
- – 13001xx: small bearing (42.95mm-41.95mm-34.95mm), right gear
- – 13002xx: small bearing (42.95mm-41.95mm-34.95mm), left gear
- – 13021xx: big bearing (44.95mm-43.95mm-34.95mm), right gear
- – 13022xx: big bearing (44.95mm-43.95mm-34.95mm), left gear
- Difference between left and right gear
- The cams are drilled for extra lubrication. The internal lubrication can be sealed with an M3 Allen screw in the first bearing.
- NOW AVAILABLE: CATCAMS steel billet rocker arms (coated) with original Mahle valve adjustment screws !!!
- FOR COMPETITION APPLICATIONS ONLY. Following details must be verified:
- if required, machine cylinder head and / or use solid shims to adjust spring load
- ONLY for use in competition engines with independent engine management (throttle position sensor) or carburettors
- We have two types of adjustable cam sprockets available:
Confirma o código do motor, a configuração VANOS e os componentes exigidos antes de encomendar e montar.
